The operating temperature range of the ASGTX-P-500.000MHZ-2 is -40°C to +85°C.
Yes, the ASGTX-P-500.000MHZ-2 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The typical power consumption of the ASGTX-P-500.000MHZ-2 is around 10-20mA, depending on the specific application and operating conditions.
Yes, the ASGTX-P-500.000MHZ-2 is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
Abracon Corporation provides a recommended PCB layout and land pattern in their application notes and datasheet, which should be followed to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASGTX-P-500.000MHZ-2 Overview

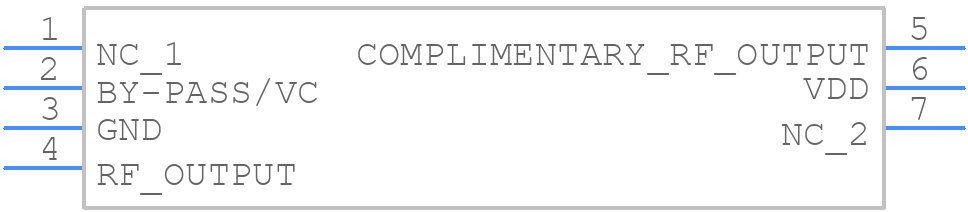

Use the download button to access the ASGTX-P-500.000MHZ-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX,
or try a keyword search, such as TCXO
