ASGTX5DAF1-156.2500 footprint, schematic symbol and 3D model by ABRACON

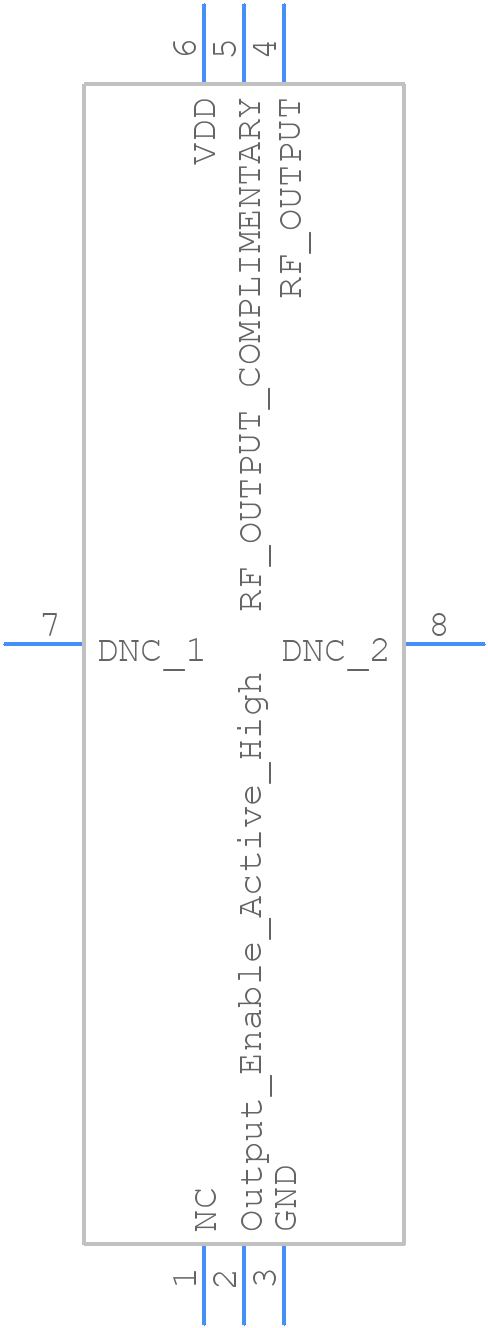

Symbol

PCB Footprints

3D Models

ASGTX5DAF1-156.2500 Details

Manufacturer Part Number:
ASGTX5DAF1-156.2500
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
52 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Aging:
1 PPM/FIRST YEAR
Fall Time-Max:
0.4 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
3%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Nom:
156.25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC8,.12X.2
Physical Dimension:
5.0mm x 3.2mm x 1.5mm
Rise Time-Max:
0.4 ns
Supply Current-Max:
90 mA
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

Abracon recommends following the recommended PCB layout and land pattern guidelines provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
The frequency stability of the ASGTX5DAF1-156.2500 is specified as ±20 ppm over the operating temperature range of -40°C to +85°C. However, it's essential to consult the datasheet or contact Abracon for more detailed information on frequency stability over temperature.
The maximum allowable voltage for the oscillator's input pins is typically specified as the maximum rating for the device, which is 3.6V for the ASGTX5DAF1-156.2500. Exceeding this voltage may damage the device.
The ASGTX5DAF1-156.2500 is a commercial-grade oscillator and may not be suitable for radiation-hardened or high-reliability applications. Abracon may offer specialized products or variants for such applications; it's recommended to contact them directly for more information.
The typical start-up time for the ASGTX5DAF1-156.2500 is specified as 10 ms, but this can vary depending on the specific application and system design. Engineers should consider the start-up time when designing their system to ensure proper synchronization and initialization.
