Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
To minimize the impact of vibration and shock on the crystal, Abracon recommends following proper mounting and handling procedures, such as using a shock-absorbing material and avoiding excessive mechanical stress during assembly and operation.
The recommended drive level for the ASGTX5DAF1-156.2500T2 is 1-10 μW, as specified in the datasheet. Exceeding this drive level can cause damage to the crystal or affect its performance.
To ensure frequency stability over temperature, Abracon recommends using a crystal oscillator circuit with a stable voltage supply, minimizing thermal gradients, and using a thermally stable package. Additionally, the ASGTX5DAF1-156.2500T2 has a specified frequency stability of ±20 ppm over the operating temperature range of -40°C to +85°C.
Abracon recommends storing the ASGTX5DAF1-156.2500T2 in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASGTX5DAF1-156.2500T2 Overview

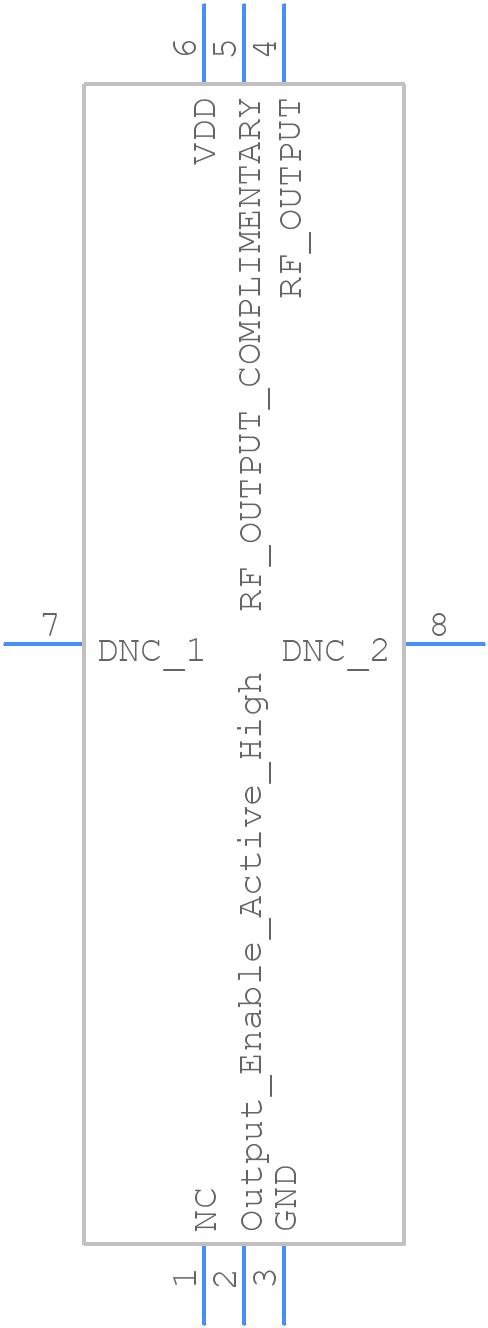

Use the download button to access the ASGTX5DAF1-156.2500T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX,
or try a keyword search, such as TCXO
