Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
To minimize the impact of vibration and shock on the crystal, Abracon recommends following proper mounting and handling procedures, such as using a shock-absorbing material and avoiding excessive mechanical stress during assembly and operation.
Abracon recommends storing the device in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
While the ASGTX5PAF1-156.2500T2 is rated for operation up to 85°C, Abracon recommends derating the frequency tolerance and stability specifications at higher temperatures. Consult the datasheet and Abracon's application notes for more information on high-temperature operation.
Abracon recommends following a systematic troubleshooting approach, including checking the PCB layout, power supply, and surrounding components for any issues. Consult the datasheet and Abracon's application notes for more information on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASGTX5PAF1-156.2500T2 Overview

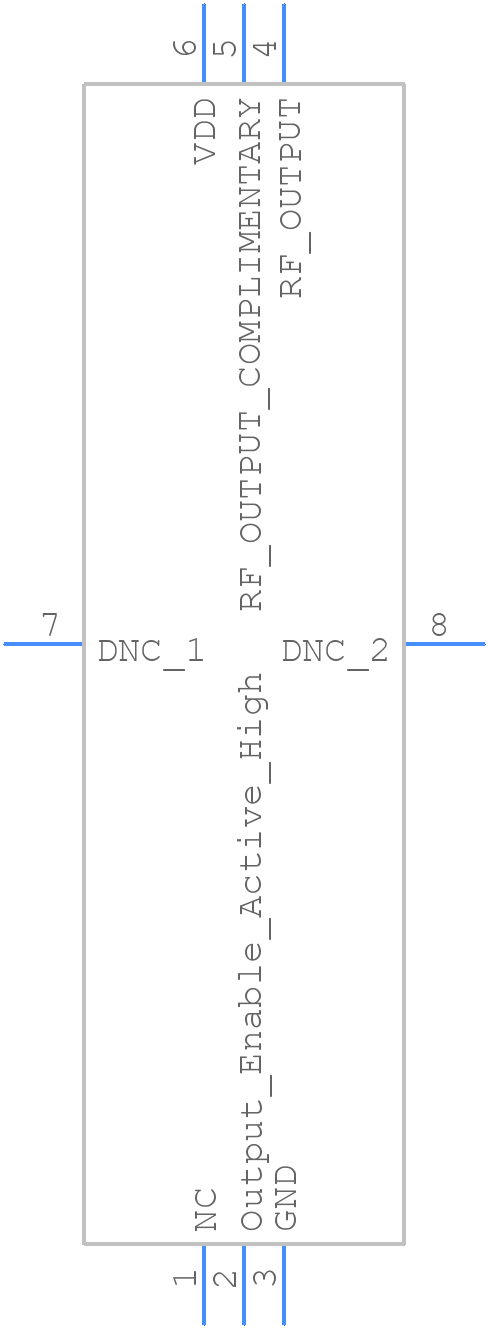

Use the download button to access the ASGTX5PAF1-156.2500T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX,
or try a keyword search, such as TCXO
