ASMT-JW32-NWY01 - Avago Technologies

Description: Broadcom ASMT-JW32-NWY01 White LED, 2700 → 10000K, 6-Pin, Round Lens SMD package

Download ASMT-JW32-NWY01 Model

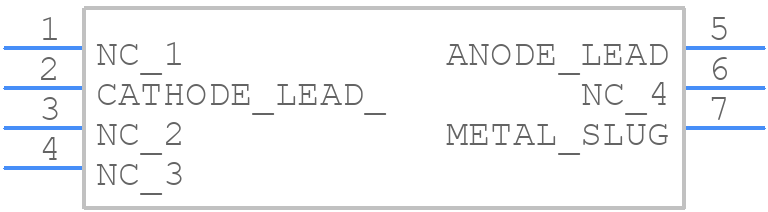

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

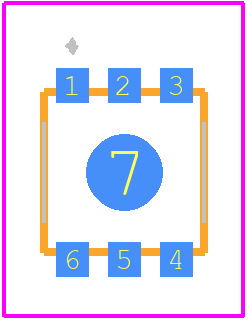

ASMT-JW32-NWY01 - Avago Technologies PCB footprint - Other - Other - ASMT-JW32-NWY01-3
click to zoom
3D Models
ASMT-JW32-NWY01 - Avago Technologies  - 3D model - Other - ASMT-JW32-NWY01-3
click to zoom

ASMT-JW32-NWY01 Details

  • Manufacturer Part Number:

    ASMT-JW32-NWY01

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Color:

    COOL WHITE

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.7 A

  • Forward Voltage-Max:

    3.5 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    1.85 mm

  • Packing Method:

    TR, 7 INCH

  • Shape:

    ROUND

  • Size:

    3.7 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    1.3 mm

  • Viewing Angle:

    140 deg

ASMT-JW32-NWY01 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a thermal management system, such as a heat sink or thermal pad, to keep the junction temperature below 125°C. Also, ensure proper airflow and avoid blocking airflow around the device.
  • Power up the device in the following sequence: VCC, AVCC, and then DVCC. The voltage ramp-up time should be 10 ms or slower to prevent latch-up or damage.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Ensure that the ESD protection devices are rated for the maximum voltage and current of the device.
  • Use 50-ohm termination resistors for the differential pairs to ensure signal integrity and minimize reflections.
