ASPI-0530HI-1R5M-T2 - ABRACON

Description: 1.5UH, 10.0A, 6.0A, IRON CORE, ±20%, SHIELDED, 25.0M?, 5.6 X 5.2 X 3.0MM, SURFACE MOUNT

Download ASPI-0530HI-1R5M-T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ASPI-0530HI-1R5M-T2 - ABRACON - PCB symbol
click to zoom
PCB Footprints

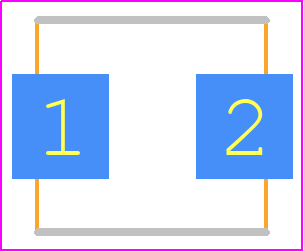

ASPI-0530HI-1R5M-T2 - ABRACON PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - 5.3x5.7x3.0mm
click to zoom
3D Models
ASPI-0530HI-1R5M-T2 - ABRACON - 3D model - Inductors Precision Moulded - 5.3x5.7x3.0mm
click to zoom

ASPI-0530HI-1R5M-T2 Details

  • Manufacturer Part Number:

    ASPI-0530HI-1R5M-T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7.4

  • Case/Size Code:

    2221

  • Construction:

    Molded

  • Core Material:

    METAL ALLOY

  • DC Resistance:

    0.025 Ω

  • Inductance-Nom (L):

    1.5 µH

  • Inductor Application:

    POWER CIRCUIT

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    3 mm

  • Package Length:

    5.7 mm

  • Package Style:

    SMT

  • Package Width:

    5.3 mm

  • Packing Method:

    TR, 13 Inch

  • Rated Current-Max:

    6 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    20%

ASPI-0530HI-1R5M-T2 Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines provided in the application note AN-03, which includes using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for optimal performance.
  • While the ASPI-0530HI-1R5M-T2 is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Consult with Abracon's application engineers for specific guidance.
  • Abracon provides a frequency response chart in the datasheet, but for custom frequency requirements, it's recommended to consult with Abracon's application engineers or request a custom frequency response chart to ensure the device meets your specific needs.
  • Abracon recommends following the JEDEC J-STD-020D.1 standard for soldering, with a peak temperature of 260°C and a dwell time of 30-60 seconds. However, it's essential to consult with Abracon's application engineers for specific guidance on soldering profiles.
  • While the ASPI-0530HI-1R5M-T2 is designed to be rugged, it's essential to consider the environmental conditions and ensure the device is properly secured and mounted to withstand vibrations and shocks. Consult with Abracon's application engineers for specific guidance on mechanical stress testing and mitigation strategies.
