ASPIAIG-F1040-8R2M-T - ABRACON

Description: Inductor Power Shielded/Molded Wirewound 8.2uH 20% 100KHz 8A 0.0225Ohm DCR 4040 Automotive T/R

Download ASPIAIG-F1040-8R2M-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

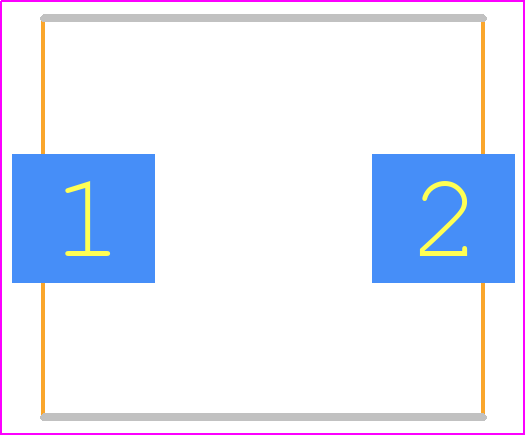

ASPIAIG-F1040-8R2M-T - ABRACON PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - 1040-4
click to zoom
3D Models
ASPIAIG-F1040-8R2M-T - ABRACON  - 3D model - Inductors Precision Moulded - 1040-4
click to zoom

ASPIAIG-F1040-8R2M-T Details

  • Manufacturer Part Number:

    ASPIAIG-F1040-8R2M-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.9

  • Case/Size Code:

    4339

  • Construction:

    Rectangular

  • Core Material:

    CARBONYL POWDER

  • DC Resistance:

    0.0225 Ω

  • Inductance-Nom (L):

    8.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    3.8 mm

  • Package Length:

    11 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    8 A

  • Reference Standard:

    AEC-Q200; TS16949

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

ASPIAIG-F1040-8R2M-T Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the clock and data signals.
  • To ensure reliable startup, Abracon recommends using a high-quality crystal with a suitable load capacitance, and following the recommended crystal oscillator circuit configuration in the datasheet. Additionally, ensure the power supply is stable and within the recommended voltage range.
  • The ASPIAIG-F1040-8R2M-T is rated for operation from -40°C to +85°C, but it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • While the ASPIAIG-F1040-8R2M-T is designed to be robust, it's still important to consider the vibration specifications in the datasheet. If your application exceeds these specifications, you may need to take additional measures to ensure the device's reliability, such as using vibration-dampening materials or mounting the device securely.
  • To troubleshoot frequency output issues, Abracon recommends checking the power supply, crystal oscillator circuit, and PCB layout for any errors or inconsistencies. Use a spectrum analyzer or frequency counter to verify the output frequency, and consult the datasheet for troubleshooting guidelines.
