Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding vias under the oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground layer to reduce noise and EMI.
To ensure reliable startup, Abracon recommends following the recommended power-up sequence, using a stable power supply, and ensuring the oscillator is properly terminated. Additionally, it's recommended to add a 10-100nF decoupling capacitor between the VCC and GND pins to filter out noise.
The AST3TQ-T-30.720MHZ-50-C has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability over temperature according to the datasheet specifications.
The AST3TQ-T-30.720MHZ-50-C is designed to meet the requirements of MIL-STD-202G, Method 204D, Condition D, which includes vibration testing. However, it's recommended to consult with Abracon's application engineers to ensure the oscillator meets the specific vibration requirements of your application.
Abracon recommends storing the AST3TQ-T-30.720MHZ-50-C in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to +85°C, and the recommended humidity range is 40% to 60% RH.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AST3TQ-T-30.720MHZ-50-C Overview

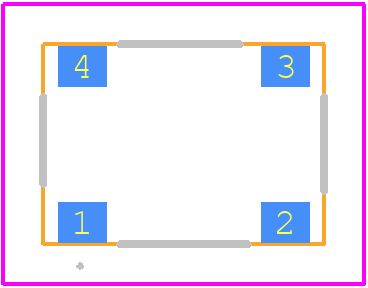

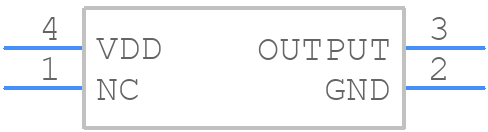

Use the download button to access the AST3TQ-T-30.720MHZ-50-C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AST3T,
or try a keyword search, such as TCXO
