ASTMHTE-25.000MHZ-ZJ-E-T - ABRACON

Description: Standard Clock Oscillators 25MHz 20ppm 2.25-3.63V -55C+125C

Download ASTMHTE-25.000MHZ-ZJ-E-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

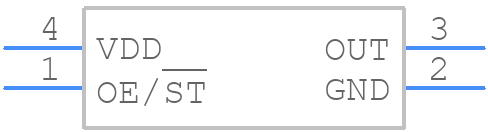

ASTMHTE-25.000MHZ-ZJ-E-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASTMHTE-25.000MHZ-ZJ-E-T - ABRACON PCB footprint - Other - Other - ASTMHTE-25.000MHZ-ZJ-E-T-3
click to zoom
3D Models
ASTMHTE-25.000MHZ-ZJ-E-T - ABRACON - 3D model - Other - ASTMHTE-25.000MHZ-ZJ-E-T-3
click to zoom

ASTMHTE-25.000MHZ-ZJ-E-T Details

  • Manufacturer Part Number:

    ASTMHTE-25.000MHZ-ZJ-E-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; TR, 7 INCH

  • Fall Time-Max:

    3 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Physical Dimension:

    3.2mm x 2.5mm x 0.75mm

  • Rise Time-Max:

    3 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

ASTMHTE-25.000MHZ-ZJ-E-T Frequently Asked Questions (FAQs)

  • The operating temperature range of the ASTMHTE-25.000MHZ-ZJ-E-T is -40°C to +85°C.
  • Yes, the ASTMHTE-25.000MHZ-ZJ-E-T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical power consumption of the ASTMHTE-25.000MHZ-ZJ-E-T is around 1.5mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the ASTMHTE-25.000MHZ-ZJ-E-T is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
  • Abracon recommends a PCB layout with a ground plane underneath the oscillator, and a 10nF capacitor between the output pin and ground to reduce noise and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASTMHTE-25.000MHZ-ZJ-E-T Overview

Use the download button to access the ASTMHTE-25.000MHZ-ZJ-E-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASTMH, or try a keyword search, such as XO
