ASVMB-50.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

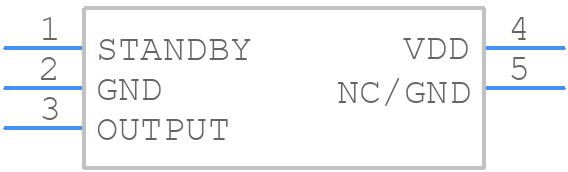

Symbol

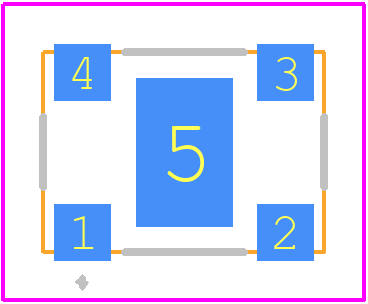

PCB Footprints

3D Models

ASVMB-50.000MHZ-LY-T Details

Manufacturer Part Number:
ASVMB-50.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.56
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
50 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Package Body Material:
PLASTIC/EPOXY
Physical Dimension:
7.0mm x 5.0mm x 0.85mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

The recommended termination resistance for the ASVMB-50.000MHZ-LY-T is 1 kΩ to ensure proper signal integrity and minimize signal reflections.
To ensure reliable startup, make sure to decouple the power supply lines with a 10 μF capacitor and a 100 nF capacitor in parallel, and provide a stable power supply voltage within the recommended operating range.
The maximum allowable frequency deviation for the ASVMB-50.000MHZ-LY-T is ±50 ppm over the entire operating temperature range.
Yes, the ASVMB-50.000MHZ-LY-T is rated for operation over a wide temperature range of -40°C to +85°C, making it suitable for use in harsh environments.
The typical current consumption of the ASVMB-50.000MHZ-LY-T is 10 mA, but this can vary depending on the specific application and operating conditions.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMB-50.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMB, or try a keyword search, such as XO
