ASVMB-66.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

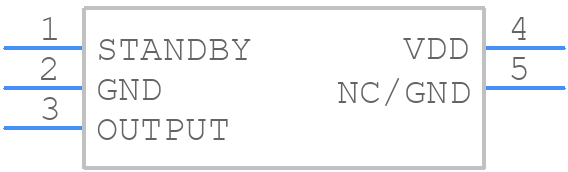

Symbol

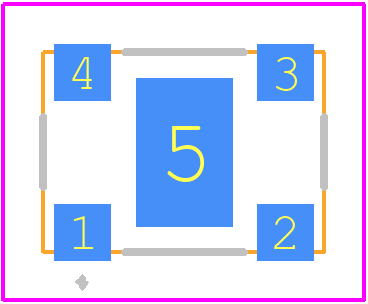

PCB Footprints

3D Models

ASVMB-66.000MHZ-LY-T Details

Manufacturer Part Number:
ASVMB-66.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.56
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
66 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Package Body Material:
PLASTIC/EPOXY
Physical Dimension:
7.0mm x 5.0mm x 0.85mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 0.01uF) between VCC and GND to reduce noise and ensure stable operation.
The ASVMB-66.000MHZ-LY-T is rated for operation up to 85°C, but its frequency stability may degrade above 70°C. For high-temperature applications, consider using a more temperature-stable oscillator or consulting with Abracon's application engineers.
Yes, but ensure that the oscillator is powered from a clean, noise-free supply, and consider using a voltage regulator or filter to isolate the oscillator from other power domains.
The start-up time is typically around 2-5ms, but this can vary depending on the specific application and power supply conditions.
The ASVMB-66.000MHZ-LY-T has built-in EMI and RFI shielding, but it's still important to follow proper PCB design and layout practices to minimize the impact of external interference.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMB-66.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMB, or try a keyword search, such as XO

Showing 0 results

Image	Part Number	Model
	DSC1001AL5-066.0000T Microchip Technology Inc MEMS OSC, LVCMOS, 66MHz, 10PPM, 1.8-3.3V, -40 to 105C, 7.0 x 5.0mm
	DSC1001AI5-066.0000T Microchip Technology Inc CMOS Output Clock Oscillator, 66MHz Nom
	DSC1001AL5-066.0000 Microchip Technology Inc MEMS OSC, LVCMOS, 66MHz, 10PPM, 1.8-3.3V, -40 to 105C, 7.0 x 5.0mm
For a full list of alternate parts for ASVMB-66.000MHZ-LY-T, check out Findchips.com
