ASVMPC-25.000MHZ-Z-T footprint, schematic symbol and 3D model by ABRACON

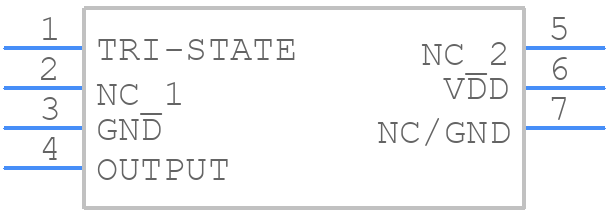

Symbol

PCB Footprints

3D Models

ASVMPC-25.000MHZ-Z-T Details

Abracon recommends a peak reflow temperature of 260°C with a dwell time of 20-30 seconds. It's essential to follow the recommended soldering profile to ensure the oscillator's reliability and performance.
The ASVMPC-25.000MHZ-Z-T is rated for operation up to 85°C. While it can tolerate higher temperatures, its frequency stability and accuracy may degrade. For high-temperature applications, consider Abracon's high-temperature oscillators or consult with their application engineers.
Abracon provides a recommended land pattern and PCB layout in their application notes. It's essential to follow these guidelines to ensure proper oscillator operation, minimize noise, and prevent electromagnetic interference (EMI).
While the ASVMPC-25.000MHZ-Z-T is a robust oscillator, it's not designed for extreme vibration or shock environments. For such applications, consider Abracon's oscillators with enhanced ruggedization or consult with their application engineers.
Lead times and minimum order quantities may vary depending on the region and distributor. It's best to check with authorized distributors or Abracon's sales team for the most up-to-date information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMPC-25.000MHZ-Z-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP, or try a keyword search, such as XO
