ASVMPC-26.000MHZ-Z-T footprint, schematic symbol and 3D model by ABRACON

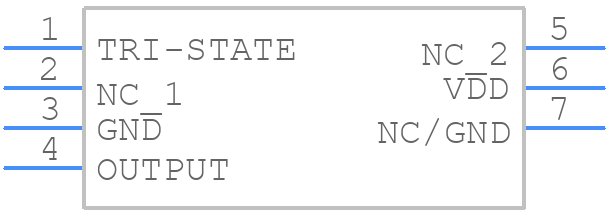

Symbol

PCB Footprints

3D Models

ASVMPC-26.000MHZ-Z-T Details

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
Yes, the ASVMPC-26.000MHZ-Z-T is rated for operation from -40°C to +85°C, making it suitable for use in harsh environments. However, it's essential to follow proper PCB design and thermal management guidelines to ensure reliable operation.
To ensure stability and minimize jitter, it's crucial to follow proper PCB layout guidelines, use a low-ESR capacitor, and maintain a stable power supply. Additionally, consider using a phase-locked loop (PLL) or a clock conditioner to further reduce jitter.
The ASVMPC-26.000MHZ-Z-T operates on a supply voltage of 1.8V to 3.3V. If your application requires a different voltage, you may need to use a voltage regulator or level shifter to ensure compatibility.
Lead times and availability may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Abracon Corporation directly for the most up-to-date information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMPC-26.000MHZ-Z-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP, or try a keyword search, such as XO
