ASVMPHC-100.000MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

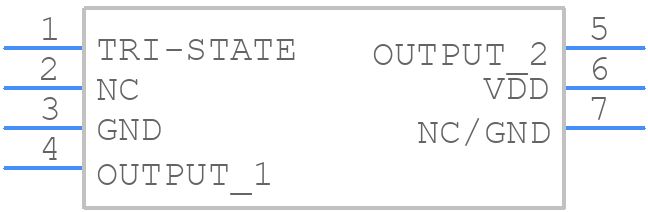

Symbol

PCB Footprints

3D Models

ASVMPHC-100.000MHZ-LR-T Details

Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
While the ASVMPHC-100.000MHZ-LR-T is rated for operation up to 125°C, it's essential to consider the specific application's temperature requirements and potential thermal stress. Abracon recommends consulting with their application engineers to determine the suitability of the device for high-temperature applications.
The ASVMPHC-100.000MHZ-LR-T is designed to provide excellent EMI and RFI suppression due to its shielded package and internal filtering. However, it's still essential to follow proper PCB design and layout practices to minimize EMI and RFI effects.
Lead times and availability may vary depending on the region, distributor, and quantity required. It's recommended to check with authorized distributors or Abracon's sales team for the most up-to-date information on lead times and availability.
While the ASVMPHC-100.000MHZ-LR-T meets the requirements for many industrial and commercial applications, it may not meet the specific requirements for automotive or aerospace applications. Abracon recommends consulting with their application engineers to determine the suitability of the device for these applications.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMPHC-100.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP, or try a keyword search, such as XO
