ASVMPLP-125.000MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

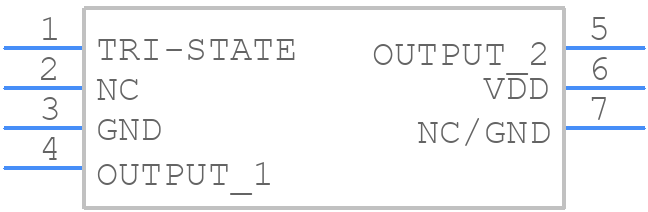

Symbol

PCB Footprints

3D Models

ASVMPLP-125.000MHZ-LR-T Details

Manufacturer Part Number:
ASVMPLP-125.000MHZ-LR-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
125 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVPECL
Output Load:
50 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC6,.2
Physical Dimension:
7.0mm x 5.0mm x 0.85mm
Qualification Status:
Not Qualified
Screening Level:
MIL-STD-883
Supply Current-Max:
58 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Technology:
CMOS

Abracon recommends following a low-impedance, 50-ohm transmission line layout for the oscillator output, with a ground plane underneath and minimal vias to reduce signal degradation.
To ensure proper startup, Abracon recommends applying power to the oscillator with a slow ramp-up (typically 1-10 ms) and ensuring the power supply is stable and noise-free.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Abracon recommends derating the oscillator's frequency stability and output amplitude at extreme temperatures (above 70°C or below -20°C) to ensure reliable operation.
Yes, the ASVMPLP-125.000MHZ-LR-T is designed to withstand vibrations up to 20 G peak acceleration, but Abracon recommends following proper PCB mounting and securing techniques to ensure the oscillator remains securely attached to the board.
Abracon recommends using a high-speed oscilloscope to measure the oscillator's output waveform and frequency, and checking the power supply, PCB layout, and surrounding components for any noise or interference that may be affecting the oscillator's performance.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMPLP-125.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP, or try a keyword search, such as XO
