Abracon recommends following a standard PCB layout for oscillators, with a solid ground plane, minimal signal routing, and a decoupling capacitor (e.g., 0.01uF) between VCC and GND, as close to the oscillator as possible.
The ASVMPLP-156.250MHZ-LR-T oscillator typically takes around 1-2ms to stabilize after power-up, and it's recommended to add a power-on reset (POR) circuit to ensure a clean startup. During power-down, the oscillator will stop oscillating, and the output will be in a high-impedance state.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Abracon recommends derating the oscillator's frequency stability and accuracy above +70°C. For extended temperature ranges, consult with Abracon's application engineers or consider using a more specialized oscillator.
The ASVMPLP-156.250MHZ-LR-T oscillator is designed for commercial-grade applications and may not be suitable for high-vibration or high-shock environments. For such applications, consider using oscillators with higher ruggedness and vibration resistance, such as those designed for industrial or automotive use.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal routing, and adding shielding or filtering components as needed. Additionally, consider using oscillators with built-in electromagnetic interference (EMI) filtering or shielding.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASVMPLP-156.250MHZ-LR-T Overview

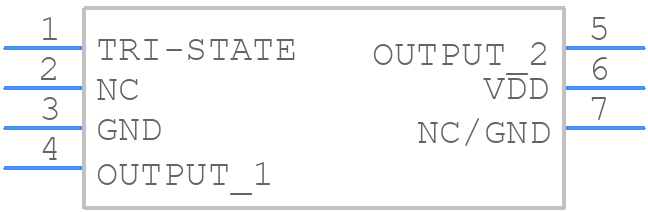

Use the download button to access the ASVMPLP-156.250MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP,
or try a keyword search, such as XO
