ASVMPLV-100.000MHZ-LR-T - ABRACON

Description: 100 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead Exposed Pad

Download ASVMPLV-100.000MHZ-LR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

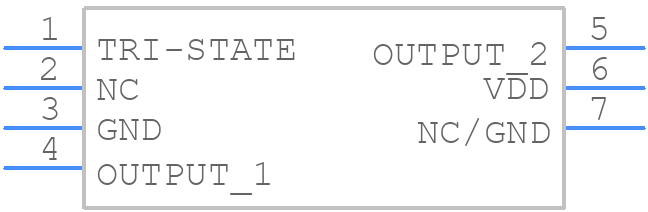

Symbol
ASVMPLV-100.000MHZ-LR-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASVMPLV-100.000MHZ-LR-T - ABRACON PCB footprint - Other - Other - ASVMP
click to zoom
3D Models
ASVMPLV-100.000MHZ-LR-T - ABRACON - 3D model - Other - ASVMP
click to zoom

ASVMPLV-100.000MHZ-LR-T Details

  • Manufacturer Part Number:

    ASVMPLV-100.000MHZ-LR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    STAND-BY; TRI-STATE; ENABLE/DISABLE FUNCTION

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    50 OHM, 2 pF

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    DILCC6,.2

  • Physical Dimension:

    7.0mm x 5.0mm x 0.85mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %
