ASVMPLV-148.500MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

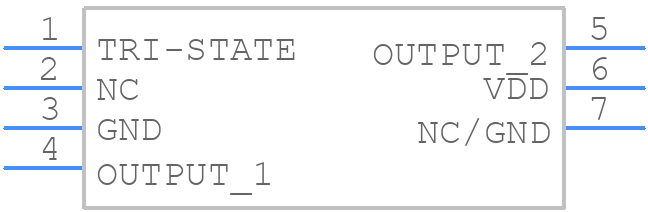

Symbol

PCB Footprints

3D Models

ASVMPLV-148.500MHZ-LR-T Details

Manufacturer Part Number:
ASVMPLV-148.500MHZ-LR-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
148.5 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC6,.2
Physical Dimension:
7.0mm x 5.0mm x 0.85mm
Qualification Status:
Not Qualified
Screening Level:
MIL-STD-883
Supply Current-Max:
32 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a symmetrical layout with the oscillator placed near the center of the PCB, with minimal routing and no vias under the device. A solid ground plane under the oscillator is also recommended.
To ensure reliable startup, Abracon recommends a power supply ramp-up time of 1ms or slower, and a power supply voltage of at least 1.8V. Additionally, a 10nF to 100nF capacitor between VCC and GND can help stabilize the power supply.
The ASVMPLV-148.500MHZ-LR-T has a frequency deviation of ±20 ppm over the operating temperature range of -40°C to 85°C. This means the oscillator frequency can vary by up to 29.7 Hz (148.5 MHz x 20 ppm) from the nominal frequency.
No, the ASVMPLV-148.500MHZ-LR-T is a fixed-frequency oscillator and cannot be adjusted to operate at a different frequency. If you need a different frequency, you should select a different part number or consult with Abracon for a custom solution.
Abracon recommends storing the ASVMPLV-148.500MHZ-LR-T at a temperature between -40°C and 85°C, with a relative humidity of 60% or less. This helps prevent damage to the device and ensures reliable operation.
