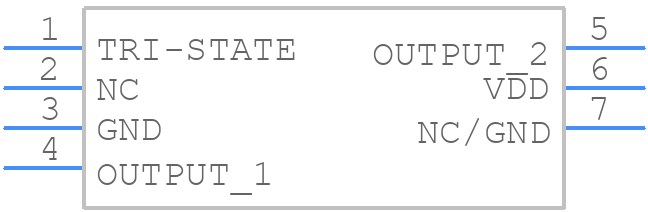

Symbol

PCB Footprints

3D Models

ASVMPLV-156.250MHZ-LR-T Details

Manufacturer Part Number:
ASVMPLV-156.250MHZ-LR-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
156.25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC6,.2
Physical Dimension:
7.0mm x 5.0mm x 0.85mm
Qualification Status:
Not Qualified
Screening Level:
MIL-STD-883
Supply Current-Max:
32 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Technology:
CMOS

The recommended operating temperature range for the ASVMPLV-156.250MHZ-LR-T is -40°C to +85°C.
To ensure reliable startup, make sure to decouple the power supply with a 10uF capacitor, and use a 1kΩ to 10kΩ resistor in series with the crystal to limit the current.
The typical power consumption of the ASVMPLV-156.250MHZ-LR-T is around 10mA to 20mA, depending on the load capacitance and operating frequency.
Yes, the ASVMPLV-156.250MHZ-LR-T is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliability.
The recommended load capacitance for the ASVMPLV-156.250MHZ-LR-T is 18pF to 22pF. You can use the Abracon Crystal Oscillator Capacitor Selection Guide to determine the optimal load capacitance for your specific application.
