ASVMPLV-200.000MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

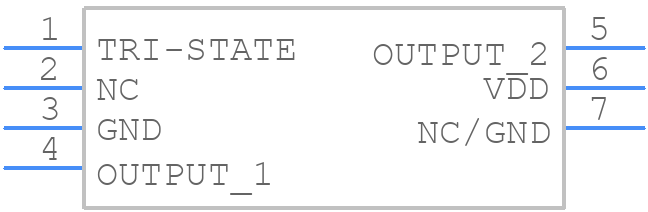

Symbol

PCB Footprints

3D Models

ASVMPLV-200.000MHZ-LR-T Details

Manufacturer Part Number:
ASVMPLV-200.000MHZ-LR-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
200 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC6,.2
Physical Dimension:
7.0mm x 5.0mm x 0.85mm
Qualification Status:
Not Qualified
Screening Level:
MIL-STD-883
Supply Current-Max:
32 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Technology:
CMOS

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
Yes, the ASVMPLV-200.000MHZ-LR-T is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation.
To minimize the impact of noise, use a low-pass filter, decouple the power supply, and ensure a stable voltage supply. Additionally, consider using a shielded enclosure and keeping the oscillator away from high-frequency sources.
The typical start-up time is around 2-5ms, but this can vary depending on the specific application and power-up conditions.
Yes, the ASVMPLV-200.000MHZ-LR-T is suitable for battery-powered devices due to its low power consumption (around 10mA). However, consider the overall system power budget and optimize the design for low power consumption.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASVMPLV-200.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP, or try a keyword search, such as XO
