AT24C1024B-PU25 - Microchip

AT24C1024B-PU25 Details

• Manufacturer Part Number:

  AT24C1024B-PU25

• Part Life Cycle Code:

  Obsolete

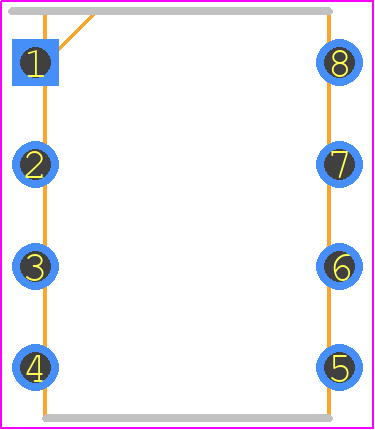

• Package Description:

  DIP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Additional Feature:

  IT ALSO OPERATES AT 0.4MHZ AT 1.8MIN SUPPLY

• Clock Frequency-Max (fCLK):

  1 MHz

• Data Retention Time-Min:

  40

• Endurance:

  1000000 Write/Erase Cycles

• I2C Control Byte:

  1010DDMR

• JESD-30 Code:

  R-PDIP-T8

• Length:

  9.27 mm

• Memory Density:

  1048576 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  131072 words

• Number of Words Code:

  128000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  128KX8

• Output Characteristics:

  OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Page Size:

  256 words

• Parallel/Serial:

  SERIAL

• Seated Height-Max:

  5.33 mm

• Serial Bus Type:

  I2C

• Standby Current-Max:

  0.000006 A

• Supply Current-Max:

  0.003 mA

• Supply Voltage-Max (Vsup):

  5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm

• Write Cycle Time-Max (tWC):

  5 ms

• Write Protection:

  HARDWARE/SOFTWARE
