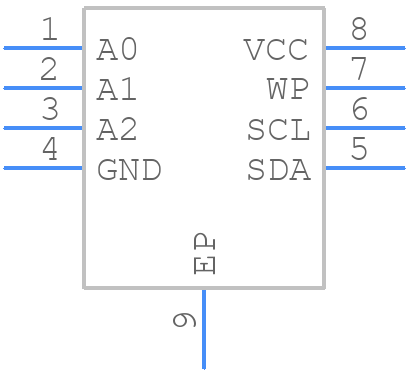

AT24C256C-MAHL-T - Microchip

AT24C256C-MAHL-T Details

• Manufacturer Part Number:

  AT24C256C-MAHL-T

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  8

• Manufacturer Package Code:

  UDFN-8

• Country Of Origin:

  Philippines, Taiwan, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  9 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Additional Feature:

  ALSO OPERATES 1.7V TO 5.5V @0.4MHZ

• Clock Frequency-Max (fCLK):

  1 MHz

• Data Retention Time-Min:

  100

• Endurance:

  1000000 Write/Erase Cycles

• I2C Control Byte:

  1010DDDR

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Memory Density:

  262144 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  8

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32KX8

• Output Characteristics:

  OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSON

• Package Equivalence Code:

  SOLCC8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Seated Height-Max:

  0.6 mm

• Serial Bus Type:

  I2C

• Standby Current-Max:

  0.000006 A

• Supply Current-Max:

  0.003 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  2 mm

• Write Cycle Time-Max (tWC):

  5 ms

• Write Protection:

  HARDWARE
