AT25DF011-XMHNHR-T - Adesto Technologies

Description: IC FLASH 1M SPI 104MHZ 8TSSOP

Download AT25DF011-XMHNHR-T Model

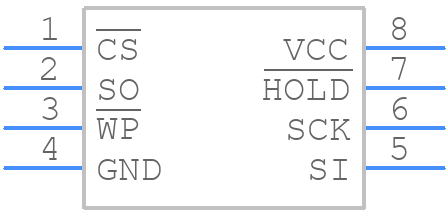

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

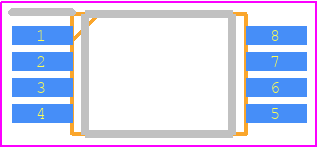

AT25DF011-XMHNHR-T - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8X, 8-lead 4.4mm Body, Plastic Thin Shrink Small Outline Package (TSSOP)
click to zoom
3D Models
AT25DF011-XMHNHR-T - Adesto Technologies  - 3D model - Small Outline Packages - 8X, 8-lead 4.4mm Body, Plastic Thin Shrink Small Outline Package (TSSOP)
click to zoom

AT25DF011-XMHNHR-T Details

  • Manufacturer Part Number:

    AT25DF011-XMHNHR-T

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    TSSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • JESD-30 Code:

    R-PDSO-G8

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

AT25DF011-XMHNHR-T Frequently Asked Questions (FAQs)

  • The AT25DF011-XMHNHR-T has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The AT25DF011-XMHNHR-T has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device will reset its internal state and output high-impedance on the I/O pins during power-up.
  • The recommended operating voltage range for the AT25DF011-XMHNHR-T is 1.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.
  • The AT25DF011-XMHNHR-T uses a page write buffer to handle page writes. The device can write up to 256 bytes of data in a single page write operation. The page write buffer is automatically cleared after each page write operation.
  • The WP (Write Protect) pin on the AT25DF011-XMHNHR-T is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in write-protect mode, and any write operations will be ignored.
