Part Image

AT25DF041B-UUN-T - Adesto Technologies

Description: NOR Flash SPI S-FLASH Dual-I/O 4Mb, IND TEMP, 1.65V

Download AT25DF041B-UUN-T Model

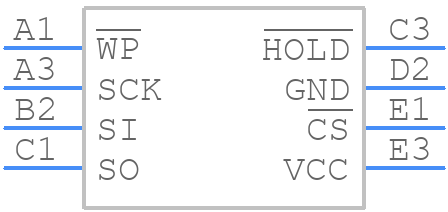

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25DF041B-UUN-T - Adesto Technologies PCB footprint - Other - Other - 8-ball WLCSP
click to zoom
3D Models
AT25DF041B-UUN-T - Adesto Technologies  - 3D model - Other - 8-ball WLCSP
click to zoom

AT25DF041B-UUN-T Details

  • Manufacturer Part Number:

    AT25DF041B-UUN-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    WLCSP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e4

  • Length:

    1.631 mm

  • Memory Density:

    524288 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,3X5,14/8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.35 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    1.575 mm

AT25DF041B-UUN-T Frequently Asked Questions (FAQs)

  • The AT25DF041B-UUN-T has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The AT25DF041B-UUN-T uses a page write buffer to handle page writes. The device can write up to 256 bytes of data in a single page write operation.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempts to write to the device will be ignored.
  • Yes, the AT25DF041B-UUN-T can be used in a multi-master SPI bus configuration. However, it is recommended to use a unique chip select signal for each device to avoid bus contention.
  • The recommended operating voltage range for the AT25DF041B-UUN-T is 1.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT25DF041B-UUN-T Overview

Use the download button to access the AT25DF041B-UUN-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT25D, or try a keyword search, such as Flash Memories
