The AT25DF641A-SH-T has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The AT25DF641A-SH-T has a 128-byte page write buffer, which allows for efficient writing of data to the device. The buffer is automatically written to the flash memory when it is full or when a page write command is issued.
The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in a protected state and writes are inhibited. When the WP# pin is high, the device is in a normal state and writes are allowed.
The AT25DF641A-SH-T has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device will automatically reset and enter a standby state after power-on.
The recommended operating voltage range for the AT25DF641A-SH-T is 2.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AT25DF641A-SH-T Overview

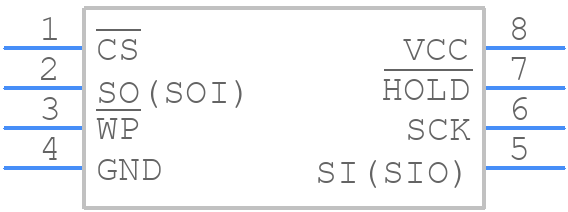

Use the download button to access the AT25DF641A-SH-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT25D,
or try a keyword search, such as Flash Memories
