The recommended operating voltage range for the AT25DL161-MHN-Y is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can operate down to 2.5V, but with reduced performance and reliability.
To ensure reliable data retention, it's crucial to follow the recommended storage conditions, such as storing the device in a cool, dry place, away from direct sunlight and radiation sources. Additionally, avoid exposing the device to extreme temperatures, humidity, or physical stress.
The AT25DL161-MHN-Y supports up to 100,000 erase cycles, as specified in the datasheet. However, it's essential to note that the actual number of erase cycles may vary depending on the usage patterns and environmental conditions.
When performing page write and erase operations, it's essential to follow the recommended protocols and timing specifications outlined in the datasheet. Additionally, ensure that the device is properly powered and that the clock frequency is within the recommended range.
The WP# (Write Protect) pin is used to prevent accidental writes or erases to the device. When the WP# pin is tied low, the device is in a write-protected state, and any attempts to write or erase data will be ignored.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AT25DL161-MHN-Y Overview

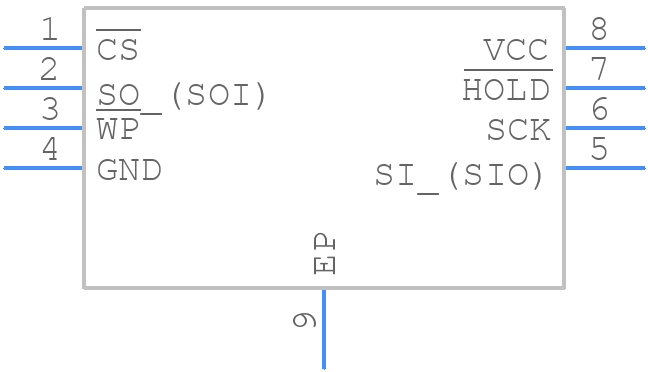

Use the download button to access the AT25DL161-MHN-Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT25D,
or try a keyword search, such as Flash Memories
