AT25DL161-SSHN-B - Adesto Technologies

Description: Flash Memory 16M, 1.65V, 100Mhz Serial Flash

Download AT25DL161-SSHN-B Model
Schematic

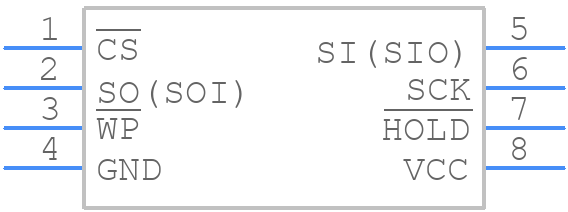

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25DL161-SSHN-B - Adesto Technologies PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8S1
click to zoom
3D Models
AT25DL161-SSHN-B - Adesto Technologies  - 3D model - SOT23 (8-Pin) - 8S1
click to zoom

AT25DL161-SSHN-B Details

  • Manufacturer Part Number:

    AT25DL161-SSHN-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    100 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.925 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    DSPI

  • Standby Current-Max:

    0.00001 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25DL161-SSHN-B Frequently Asked Questions (FAQs)

  • The AT25DL161-SSHN-B has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The AT25DL161-SSHN-B uses a page write buffer to handle page writes. The device can write up to 256 bytes of data in a single page write operation.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempts to write to the device will be ignored.
  • Yes, the AT25DL161-SSHN-B can be used in a multi-master SPI bus configuration. The device has a built-in arbitration mechanism to handle multiple masters on the same bus.
  • The recommended operating voltage range for the AT25DL161-SSHN-B is 1.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.
