AT25FF321A-SHN-T - Renesas Electronics

Description: The AT25FF321A is a member of our Standard class code and data storage solutions and is ideally suited for systems that need fast Read performance and low Sleep power for boot/code shadowing and Execute-in-Place tasks. It’s low power consumption and wide operating voltage range are optimized for battery-powered designs.

Download AT25FF321A-SHN-T Model

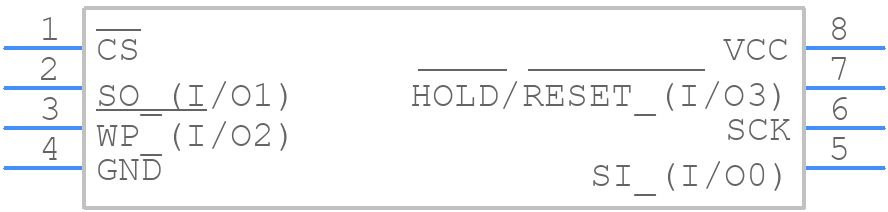

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25FF321A-SHN-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8S2 – EIAJ SOIC
click to zoom
3D Models
AT25FF321A-SHN-T - Renesas Electronics  - 3D model - Small Outline Packages - 8S2 – EIAJ SOIC
click to zoom

AT25FF321A-SHN-T Details

  • Manufacturer Part Number:

    AT25FF321A-SHN-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-W

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.29 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.017 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.24 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25FF321A-SHN-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT25FF321A-SHN-T is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.5V to 3.7V for a short duration, but prolonged operation outside the recommended range may affect its performance and reliability.
  • During power-up, the HOLD pin should be kept high (VCC) until the power supply has stabilized. During power-down, the HOLD pin should be kept low (GND) to prevent any unwanted writes or accesses to the device. It's also recommended to add a pull-up resistor to the HOLD pin to ensure it remains high during power-up.
  • The AT25FF321A-SHN-T supports up to 100,000 write cycles per sector, with a total of 4,096 sectors. This means the device can withstand a total of 409,600,000 write cycles (100,000 cycles/sector * 4,096 sectors).
  • To securely erase the AT25FF321A-SHN-T, use the Chip Erase command (0xC7) followed by a sector erase command (0xD8) for each sector. This will erase all data and security registers. Additionally, consider using a secure erase algorithm that incorporates multiple erase cycles and verification steps to ensure data is completely removed.
  • The WP (Write Protect) pin is used to protect the entire memory array or specific sectors from write operations. When the WP pin is low (GND), the entire memory array is write-protected. When the WP pin is high (VCC), write protection is disabled. To protect specific sectors, use the sector protection registers (SPR) in conjunction with the WP pin.
