AT25FF321A-UUN-T - Adesto Technologies

Description: IC FLASH 32MBIT SPI/QUAD 12WLCSP

Download AT25FF321A-UUN-T Model

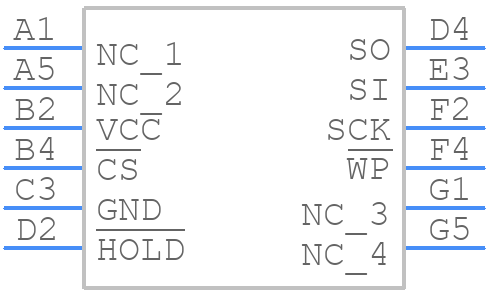

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25FF321A-UUN-T - Adesto Technologies PCB footprint - Other - Other - 12-WLCSP
click to zoom
3D Models
AT25FF321A-UUN-T - Adesto Technologies  - 3D model - Other - 12-WLCSP
click to zoom

AT25FF321A-UUN-T Details

  • Manufacturer Part Number:

    AT25FF321A-UUN-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    WLCSP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2020-02-05

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-XBCS-B8

  • JESD-609 Code:

    e1

  • Length:

    1.767 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    CSP

  • Package Equivalence Code:

    BGA8,3X5,14/8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP SCALE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.462 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000013 A

  • Supply Current-Max:

    0.0146 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    1.7374 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25FF321A-UUN-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT25FF321A-UUN-T is 1.7V to 3.6V.
  • When the device is busy, it will ignore any incoming write operations. It is recommended to poll the WIP (Write In Progress) bit in the status register to check if the device is busy before initiating a page write operation.
  • The WP pin is used to enable or disable write protection for the entire device or a specific sector. When the WP pin is low, the device or sector is write-protected, and when it is high, write operations are allowed.
  • To perform a sector erase operation, send the Sector Erase command (0x20) followed by the sector address. The device will then erase the entire sector.
  • The AT25FF321A-UUN-T has a minimum of 100,000 erase cycles per sector, and a maximum of 1,000,000 erase cycles per device.
