AT25PE20-SSHN-B - Adesto Technologies

Description: ADESTO TECHNOLOGIES - AT25PE20-SSHN-B - FLASH MEMORY, 2MBIT, -40 TO 85DEG C

Download AT25PE20-SSHN-B Model

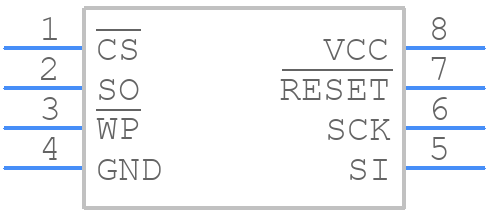

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25PE20-SSHN-B - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S1 – 8-lead JEDEC SOIC
click to zoom
3D Models
AT25PE20-SSHN-B - Adesto Technologies  - 3D model - Small Outline Packages - 8S1 – 8-lead JEDEC SOIC
click to zoom

AT25PE20-SSHN-B Details

  • Manufacturer Part Number:

    AT25PE20-SSHN-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Additional Feature:

    IT ALSO OPERATES AT 3V NOMINAL SUPPLY

  • Clock Frequency-Max (fCLK):

    70 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.925 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AT25PE20-SSHN-B Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT25PE20-SSHN-B is 1.7V to 3.6V.
  • The AT25PE20-SSHN-B allows up to 256 bytes to be written to the device in a single write cycle.
  • The AT25PE20-SSHN-B supports up to 100,000 erase cycles.
  • The AT25PE20-SSHN-B has a data retention period of at least 100 years.
  • Yes, the AT25PE20-SSHN-B is compatible with the SPI bus protocol.
