AT25SF041B-SHD-B - Renesas Electronics

Description: The AT25SF041B is a member of our standard class code and data storage solutions designed for 3V systems in which program code is shadowed from Flash memory into embedded or external RAM for execution.The architecture includes erase block sizes that are optimized to meet the needs of today's code and data storage applications and three security register pages for unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Universally compatible pinout and comma

Download AT25SF041B-SHD-B Model

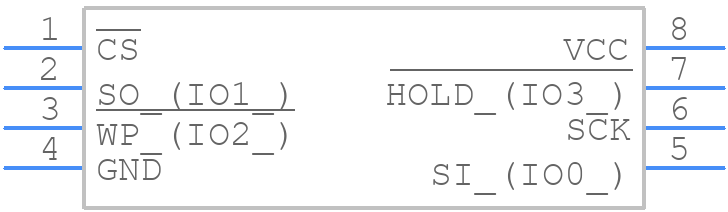

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25SF041B-SHD-B - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - AT25SF041B-SHD-B
click to zoom
3D Models
AT25SF041B-SHD-B - Renesas Electronics  - 3D model - Small Outline Packages - AT25SF041B-SHD-B
click to zoom

AT25SF041B-SHD-B Details

  • Manufacturer Part Number:

    AT25SF041B-SHD-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5.1

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5.29 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.0185 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.24 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25SF041B-SHD-B Frequently Asked Questions (FAQs)

  • The AT25SF041B-SHD-B has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) should be pulled high during power-up and power-down to prevent any unwanted writes or erases. It's recommended to connect a pull-up resistor to the HOLD# pin to ensure it remains high during these transitions.
  • The recommended clock frequency for the SPI interface is up to 50 MHz, but it can operate at lower frequencies as well. However, the maximum clock frequency may vary depending on the system design and layout.
  • The WP# pin is used to protect the entire memory array from writes and erases. When WP# is low, the entire memory array is write-protected. When WP# is high, the memory array is not protected, and writes and erases are allowed. It's recommended to connect a pull-up resistor to the WP# pin to ensure it remains high during normal operation.
  • The Deep Power-Down (DPD) mode is a low-power state that reduces the power consumption of the device to a minimum. In this mode, the device is not accessible, and all internal operations are stopped. The DPD mode is useful for battery-powered devices or systems that require low power consumption during idle periods.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT25SF041B-SHD-B Overview

Use the download button to access the AT25SF041B-SHD-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT25S, or try a keyword search, such as Flash Memories
