AT25SF041B-SSHB-B footprint, schematic symbol and 3D model by Adesto Technologies

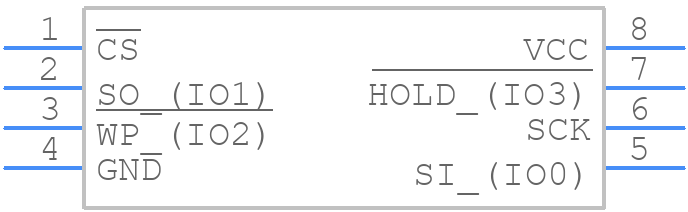

Symbol

PCB Footprints

3D Models

AT25SF041B-SSHB-B Details

The AT25SF041B-SSHB-B has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
The AT25SF041B-SSHB-B uses a page-based write architecture, where data is written in pages of 256 bytes. The device also supports block erase, where a block of 4KB can be erased at a time.
The WP pin is used to enable or disable write protection for the entire device or a specific sector. When the WP pin is low, the device or sector is write-protected, and when it is high, writes are allowed.
The AT25SF041B-SSHB-B has a built-in power-on reset circuit that resets the device when power is applied. During power-down, the device enters a low-power standby mode to conserve power.
The recommended operating voltage range for the AT25SF041B-SSHB-B is 2.7V to 3.6V, with a typical operating voltage of 3.3V.

Community Provided

System Verified

Community Approved

Use the download button to access the AT25SF041B-SSHB-B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AT25S, or try a keyword search, such as Flash Memories
