AT25SF081-SSHD-B - Adesto Technologies

Description: NOR Flash 8Mb, 2.5V, 104Mhz Serial Flash

Download AT25SF081-SSHD-B Model

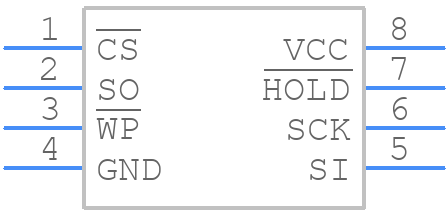

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25SF081-SSHD-B - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S1 - SOIC
click to zoom
3D Models
AT25SF081-SSHD-B - Adesto Technologies  - 3D model - Small Outline Packages - 8S1 - SOIC
click to zoom

AT25SF081-SSHD-B Details

  • Manufacturer Part Number:

    AT25SF081-SSHD-B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.925 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25SF081-SSHD-B Frequently Asked Questions (FAQs)

  • The AT25SF081-SSHD-B has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The AT25SF081-SSHD-B has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device will reset its internal state and output high-impedance state on the I/O pins during power-up.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempts to write to the device will be ignored.
  • Yes, the AT25SF081-SSHD-B can be used in a multi-master SPI bus system. The device has a built-in slave select input (SS) that allows it to be selected or deselected by the master device.
  • The recommended operating voltage range for the AT25SF081-SSHD-B is 1.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.
