AT25SF128A-MHB-T - Adesto Technologies

Description: Serial NOR Flash Memory 128Mb 2.7V to 3.6V 8-Pin UDFN Surface Mount T/R - Tape and Reel

Download AT25SF128A-MHB-T Model

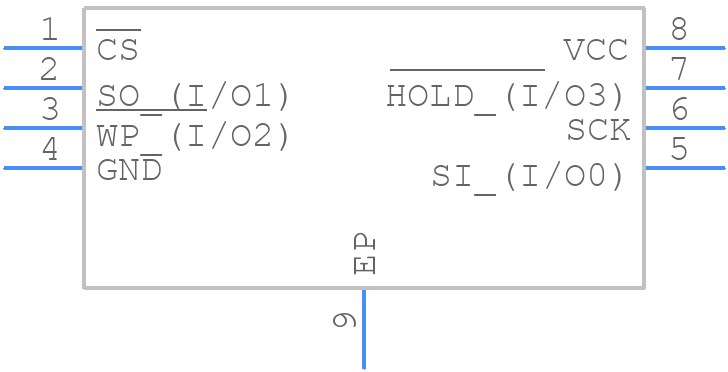

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25SF128A-MHB-T - Adesto Technologies PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN_-6
click to zoom
3D Models
AT25SF128A-MHB-T - Adesto Technologies  - 3D model - Small Outline No-lead - UDFN_-6
click to zoom

AT25SF128A-MHB-T Details

  • Manufacturer Part Number:

    AT25SF128A-MHB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    UDFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2018-11-13

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

AT25SF128A-MHB-T Frequently Asked Questions (FAQs)

  • The AT25SF128A-MHB-T supports up to 100,000 erase cycles.
  • The AT25SF128A-MHB-T uses a page write buffer to handle page write operations. The buffer is 128 bytes long, and the device can perform a page write operation in 1.5 ms (typical).
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the entire memory array is write-protected.
  • The AT25SF128A-MHB-T has a built-in power-on reset (POR) circuit that ensures the device is in a known state after power-up. During power-down, the device automatically goes into a low-power standby mode to conserve power.
  • The AT25SF128A-MHB-T operates over a temperature range of -40°C to +85°C.
