AT25SF641B-MHB-T footprint, schematic symbol and 3D model by Adesto Technologies

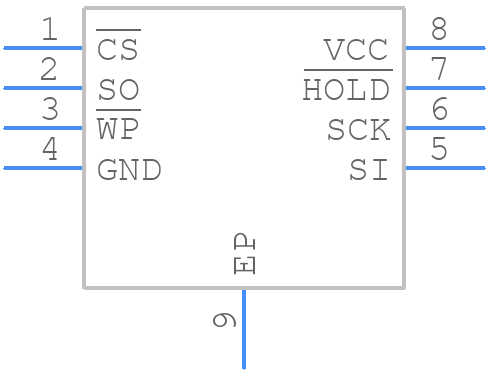

Symbol

PCB Footprints

3D Models

AT25SF641B-MHB-T Details

The recommended operating voltage range for the AT25SF641B-MHB-T is 2.7V to 3.6V.
The HOLD pin should be pulled high during power-up and power-down sequences to prevent unwanted writes to the device.
The AT25SF641B-MHB-T supports up to 100,000 erase cycles.
Wear leveling can be implemented by distributing write cycles across the entire memory space, using techniques such as dynamic wear leveling or static wear leveling.
The WP pin is used to enable or disable write protection for the entire device or specific sectors.

Community Provided

System Verified

Community Approved

Use the download button to access the AT25SF641B-MHB-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AT25S, or try a keyword search, such as Flash Memories
