AT25SF641B-SHB-B footprint, schematic symbol and 3D model by Adesto Technologies

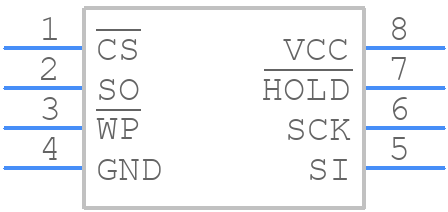

Symbol

PCB Footprints

3D Models

AT25SF641B-SHB-B Details

The recommended operating voltage range for the AT25SF641B-SHB-B is 2.3V to 3.6V, with a typical voltage of 3.3V.
When the device is in low power mode, page write operations are not allowed. The device must be brought out of low power mode before performing page write operations.
The maximum number of erase cycles for the AT25SF641B-SHB-B is 100,000 cycles per sector.
The device's status during a write or erase operation can be determined by polling the Write-In-Progress (WIP) bit in the Status Register.
The Protect Pin (PP) is used to enable or disable the write protection feature of the device. When the PP pin is tied low, the device is in write-protect mode, and when it is tied high, the device is in write-enable mode.
