AT26DF081A-SU - Adesto Technologies

Description: IC FLASH 8MBIT SPI 70MHZ 8SOIC

Download AT26DF081A-SU Model

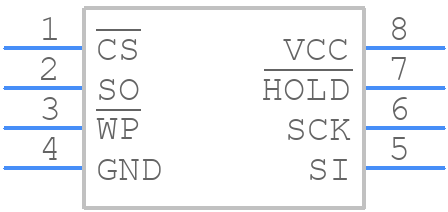

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT26DF081A-SU - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S2
click to zoom
3D Models
AT26DF081A-SU - Adesto Technologies  - 3D model - Small Outline Packages - 8S2
click to zoom

AT26DF081A-SU Details

  • Manufacturer Part Number:

    AT26DF081A-SU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    70 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    2.7 V

  • Qualification Status:

    Not Qualified

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000035 A

  • Supply Current-Max:

    0.016 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Write Protection:

    HARDWARE/SOFTWARE

AT26DF081A-SU Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT26DF081A-SU is 2.7V to 3.6V.
  • To prevent wear leveling issues, it is recommended to use a wear leveling algorithm to distribute write cycles across the device. Additionally, use the page write buffer to minimize the number of write cycles.
  • The AT26DF081A-SU supports up to 100,000 write cycles per sector.
  • To implement secure erase, use the Secure Erase command (0x38) to erase the entire device. This command will erase all data and set the device to its factory default state.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in a write-protected state, and all write operations are inhibited.
