AT30TS74-XM8M-B - Microchip

Description: Board Mount Temperature Sensors I2C1.7-5.5V 3.4MHz Ind High Tmp 8-MSOP

Download AT30TS74-XM8M-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

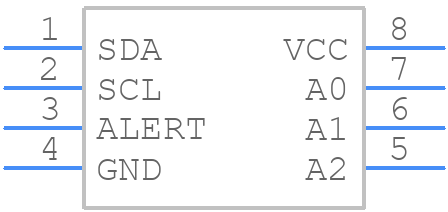

Symbol
AT30TS74-XM8M-B - Microchip - PCB symbol
click to zoom
PCB Footprints
AT30TS74-XM8M-B - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8XM — 8-lead MSOP
click to zoom
3D Models
AT30TS74-XM8M-B - Microchip - 3D model - Small Outline Packages - 8XM — 8-lead MSOP
click to zoom

AT30TS74-XM8M-B Details

  • Manufacturer Part Number:

    AT30TS74-XM8M-B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

AT30TS74-XM8M-B Frequently Asked Questions (FAQs)

  • A good PCB layout for the AT30TS74-XM8M-B involves placing the sensor near the thermal source, using a thermal pad or thermal via to dissipate heat, and minimizing copper pours and thermal barriers around the sensor.
  • Calibration involves comparing the sensor's output to a known temperature reference. Use a temperature calibration bath or a precision temperature reference to calibrate the sensor, and store the calibration data in an external EEPROM or microcontroller.
  • The maximum cable length for the I2C interface depends on the capacitance of the cable and the clock frequency. As a general rule, keep the cable length below 10 meters to ensure reliable communication.
  • Use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding EMI filters or shielding to minimize interference. Ensure the sensor is placed in a shielded area or use a shielded cable to connect to the microcontroller.
  • Power up the VDD pin first, followed by the VSS pin. Ensure the power supply is stable and within the recommended operating range before initializing the I2C interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT30TS74-XM8M-B Overview

Use the download button to access the AT30TS74-XM8M-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT30T, or try a keyword search, such as Temperature Sensors
