AT42QT1012-MAHR - Microchip

Description: Capacitive Touch Sensors One-Channel Touch Sensor IC Capacitive Touch Buttons 8-UDFN, USON

Download AT42QT1012-MAHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

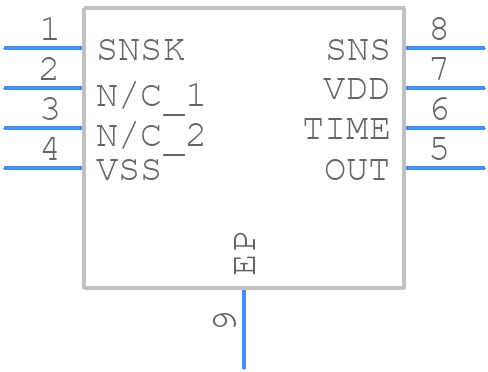

AT42QT1012-MAHR - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1012-MAHR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin UDFN/USON_1
click to zoom
3D Models
AT42QT1012-MAHR - Microchip - 3D model - Small Outline No-lead - 8-pin UDFN/USON_1
click to zoom

AT42QT1012-MAHR Details

  • Manufacturer Part Number:

    AT42QT1012-MAHR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    SEATED HGT MAX

  • Body Breadth:

    1.95 mm

  • Body Height:

    0.6 mm

  • Body Length or Diameter:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.60-2.30V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

AT42QT1012-MAHR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AT42QT1012-MAHR involves placing the sensor as close to the touch surface as possible, with a solid ground plane underneath to reduce noise. The sensor's pins should be connected to the microcontroller using short, low-impedance traces.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings to suit the specific application. This can be done using Microchip's QTouch Configurator tool or by writing custom code to adjust the sensor's registers.
  • The maximum operating frequency of the AT42QT1012-MAHR is 200 kHz, but it can be adjusted to lower frequencies to reduce power consumption or improve noise immunity.
  • To handle noise and interference, use a solid ground plane, keep the sensor and microcontroller close together, and use shielding or filtering to reduce electromagnetic interference (EMI).
  • Yes, the AT42QT1012-MAHR is designed for use with capacitive touch screens and can detect touch events, gestures, and proximity sensing.
