AT42QT1040-MMH - Microchip

Description: QTouch 4-channels Sensor AKS Buttons AT42QT1040-MMH, Capacitive Touch Screen Controller, 16 bit I2C 2-Wire, 20-Pin VQFN

Download AT42QT1040-MMH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

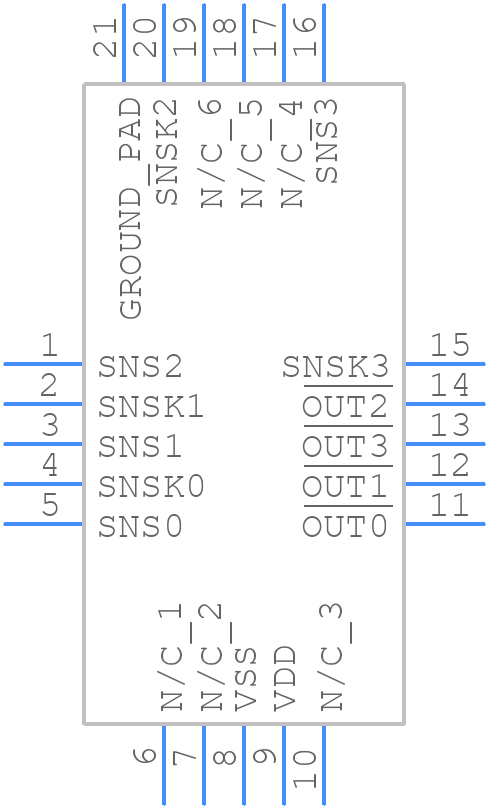

AT42QT1040-MMH - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1040-MMH - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN20
click to zoom
3D Models
AT42QT1040-MMH - Microchip - 3D model - Quad Flat No-Lead - VQFN20
click to zoom

AT42QT1040-MMH Details

  • Manufacturer Part Number:

    AT42QT1040-MMH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • Body Breadth:

    3 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.7-4V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.12SQ,18

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

AT42QT1040-MMH Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AT42QT1040-MMH involves placing the sensor on a separate layer from the digital signals, using a ground plane to shield the sensor, and keeping the sensor traces as short as possible to minimize noise.
  • The AT42QT1040-MMH does not require calibration. It is a self-calibrating capacitive touch sensor that automatically adjusts to changes in the environment.
  • The AT42QT1040-MMH supports up to 10 touch points.
  • Yes, the AT42QT1040-MMH can be used with any microcontroller that has an I2C interface, not just AVR microcontrollers.
  • The operating temperature range of the AT42QT1040-MMH is -40°C to +85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1040-MMH Overview

Use the download button to access the AT42QT1040-MMH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers
