AT42QT1060-MMUR - Microchip

Description: MICROCHIP - AT42QT1060-MMUR - TOUCH SENSOR 28-QFN

Download AT42QT1060-MMUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

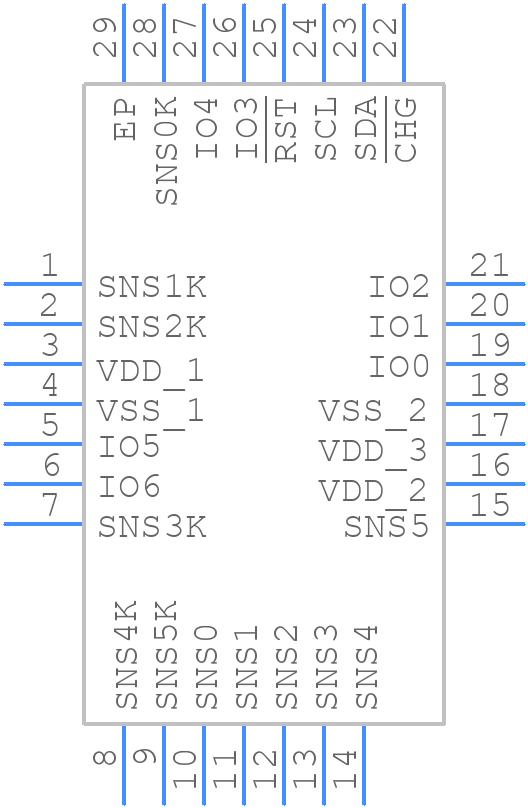

AT42QT1060-MMUR - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1060-MMUR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-1
click to zoom
3D Models
AT42QT1060-MMUR - Microchip - 3D model - Quad Flat No-Lead - QFN-1
click to zoom

AT42QT1060-MMUR Details

  • Manufacturer Part Number:

    AT42QT1060-MMUR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    VQFN-28

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    4 mm

  • Body Height:

    0.88 mm

  • Body Length or Diameter:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.50-2.60V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

AT42QT1060-MMUR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AT42QT1060-MMUR involves placing the sensor on a separate layer from the MCU and other noisy components, using a ground plane to shield the sensor, and keeping the sensor traces as short as possible.
  • Calibration involves adjusting the sensor's sensitivity and offset to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration using a calibration tool.
  • The AT42QT1060-MMUR has an operating temperature range of -40°C to 85°C, but it's recommended to operate within a narrower range (e.g., 0°C to 70°C) for optimal performance and reliability.
  • Yes, the AT42QT1060-MMUR can operate with a 3.3V power supply, but it's recommended to use a 5V power supply for optimal performance and to ensure compatibility with the device's analog output.
  • To minimize EMI, use a shielded cable, keep the sensor and MCU close together, and use a common ground plane. Additionally, consider using EMI filters or shielding on the PCB to reduce electromagnetic radiation.
