AT42QT1070-SSUR - Microchip

Description: MICROCHIP - AT42QT1070-SSUR - SENSOR, QTOUCH, 7-KEY, 14SOIC

Download AT42QT1070-SSUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

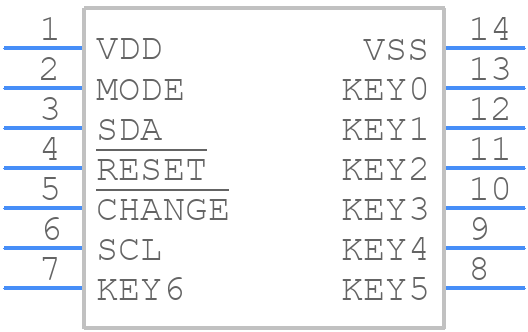

Symbol
AT42QT1070-SSUR - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1070-SSUR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-pin SOIC150
click to zoom
3D Models
AT42QT1070-SSUR - Microchip - 3D model - Small Outline Packages - 14-pin SOIC150
click to zoom

AT42QT1070-SSUR Details

  • Manufacturer Part Number:

    AT42QT1070-SSUR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOIC-14

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    8.65 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.60-2.60

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

AT42QT1070-SSUR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AT42QT1070-SSUR involves placing the sensor on a separate PCB layer, using a solid ground plane, and keeping the sensor traces as short as possible to minimize noise and interference.
  • The AT42QT1070-SSUR does not require calibration. It is a self-calibrating sensor that automatically adjusts its sensitivity and offset during power-up. However, it's recommended to perform a simple sensitivity adjustment procedure to optimize the sensor's performance.
  • The AT42QT1070-SSUR can operate within a temperature range of -40°C to +85°C. However, the sensor's accuracy and sensitivity may degrade at extreme temperatures.
  • Yes, the AT42QT1070-SSUR is designed to operate in noisy environments. It has built-in noise filtering and shielding to minimize electromagnetic interference (EMI). However, it's still recommended to follow proper PCB design and layout guidelines to minimize noise and interference.
  • The typical response time of the AT42QT1070-SSUR is around 10 ms. However, this can vary depending on the specific application and the sensor's configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1070-SSUR Overview

Use the download button to access the AT42QT1070-SSUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers
