AT45DB021E-MHN-T - Renesas Electronics

Description: The AT45DB021E DataFlash is a member of our System Enhancing class of code and data storage solutions designed with an advanced SRAM buffer architecture that makes it the most efficient memory for data logging. It also incorporates a suite of advanced features that save system power, reduce processor overhead, simplify software development, and provide comprehensive data security and integrity options.

Download AT45DB021E-MHN-T Model

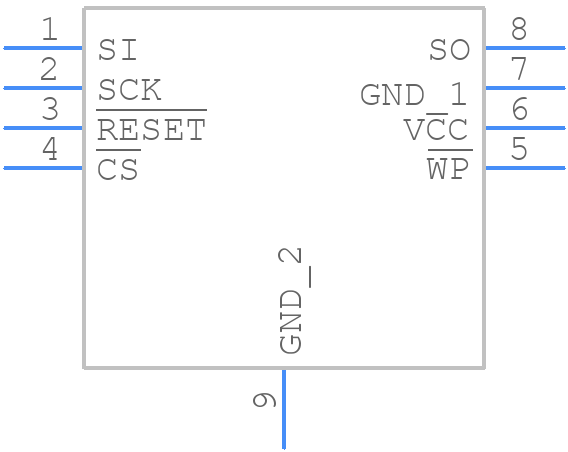

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT45DB021E-MHN-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8MA1 – UDFN-1
click to zoom
3D Models
AT45DB021E-MHN-T - Renesas Electronics  - 3D model - Small Outline No-lead - 8MA1 – UDFN-1
click to zoom

AT45DB021E-MHN-T Details

  • Manufacturer Part Number:

    AT45DB021E-MHN-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    70 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000012 A

  • Supply Current-Max:

    0.015 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT45DB021E-MHN-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT45DB021E-MHN-T is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.5V to 3.7V for a short duration, but prolonged operation outside the recommended range may affect its performance and reliability.
  • During power-up, the HOLD pin should be kept high until the power supply has stabilized. During power-down, the HOLD pin should be kept low to prevent any unwanted writes or accesses to the device. It's also recommended to keep the HOLD pin low during reset sequences to ensure a clean reset.
  • The AT45DB021E-MHN-T supports up to 10,000 erase cycles per sector, with a total of 256 sectors. This means the device can withstand a total of 2,560,000 erase cycles (10,000 cycles/sector * 256 sectors) before its endurance is compromised.
  • To implement a reliable write protection mechanism, you can use the WP pin in conjunction with the SRWD (Software Write Disable) bit in the Status Register. When the WP pin is low and the SRWD bit is set, the device is write-protected. Additionally, you can use the sector protection mechanism, which allows you to protect individual sectors or the entire device from writes.
  • The recommended method for detecting the end of an erase or program operation is to poll the RY/BY (Ready/Busy) pin or the RDY (Ready) bit in the Status Register. When the RY/BY pin is high or the RDY bit is set, the operation is complete. You can also use the E/E (Erase/Program) bit in the Status Register to determine the status of the operation.
