AT45DB041E-SHN-B - Renesas Electronics

Description: The AT45DB041E DataFlash is a member of our system enhancing class of code and data storage solutions designed with an advanced dual SRAM buffer architecture that makes it the most efficient memory for data logging. It also incorporates a suite of advanced features that save system power, reduce processor overhead, simplify software development, and provide comprehensive data security and integrity options.

Download AT45DB041E-SHN-B Model

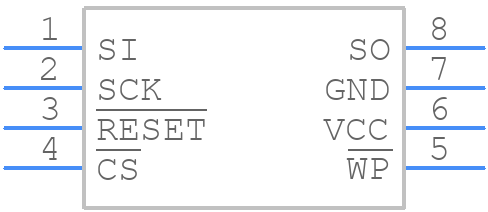

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT45DB041E-SHN-B - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8S2 - 8-lead, 0.208''Wide EIAJ SOIC
click to zoom
3D Models
AT45DB041E-SHN-B - Renesas Electronics  - 3D model - Small Outline Packages - 8S2 - 8-lead, 0.208''Wide EIAJ SOIC
click to zoom

AT45DB041E-SHN-B Details

  • Manufacturer Part Number:

    AT45DB041E-SHN-B

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-W

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    85 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5.29 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    1

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX1

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00004 A

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.24 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT45DB041E-SHN-B Frequently Asked Questions (FAQs)

  • The AT45DB041E-SHN-B has a maximum of 10,000 erase cycles per sector, and a total of 100,000 erase cycles for the entire device.
  • To handle page write buffer underrun errors, ensure that the page write buffer is fully loaded with data before initiating the page write operation. Also, verify that the correct page address is being used and that the device is not in a busy state.
  • The recommended method for detecting the end of a page write operation is to poll the RY/BY# pin, which goes low when the operation is complete. Alternatively, the SRD (Status Register Dump) command can be used to read the status register and check the ESB (Erase/Status Bit) to determine when the operation is complete.
  • Wear leveling can be implemented by tracking the number of erase cycles for each sector and rotating the data to evenly distribute the wear across the device. This can be done using a combination of hardware and software techniques, such as using a wear leveling algorithm and sector remapping.
  • The maximum operating temperature range for the AT45DB041E-SHN-B is -40°C to +85°C.
