AT45DB081E-SHN-T - Adesto Technologies

Description: NOR Flash 8Mb, 1.65V, 85Mhz SPI Serial Flash

Download AT45DB081E-SHN-T Model

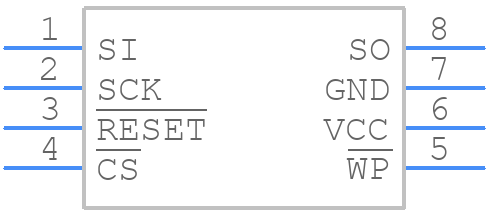

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT45DB081E-SHN-T - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S2
click to zoom
3D Models
AT45DB081E-SHN-T - Adesto Technologies  - 3D model - Small Outline Packages - 8S2
click to zoom

AT45DB081E-SHN-T Details

  • Manufacturer Part Number:

    AT45DB081E-SHN-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    85 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5.29 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    1

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.7 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.24 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT45DB081E-SHN-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT45DB081E-SHN-T is 2.7V to 3.6V.
  • The HOLD pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The AT45DB081E-SHN-T supports up to 100,000 erase cycles.
  • Wear leveling can be implemented by distributing write and erase operations across the device, using techniques such as dynamic wear leveling or static wear leveling.
  • The WP pin is used to prevent accidental writes or erases by pulling it low, which enables write protection.
