AT45DB641E-SHN-B - Adesto Technologies

Description: IC FLASH 64MBIT SPI 85MHZ 8SOIC

Download AT45DB641E-SHN-B Model

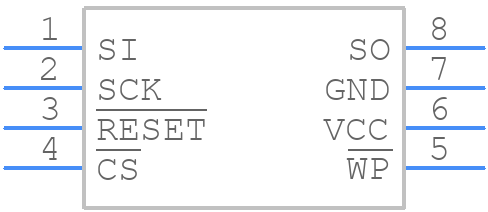

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT45DB641E-SHN-B - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S2 - 8-lead EIAJ SOIC
click to zoom
3D Models
AT45DB641E-SHN-B - Adesto Technologies  - 3D model - Small Outline Packages - 8S2 - 8-lead EIAJ SOIC
click to zoom

AT45DB641E-SHN-B Details

  • Manufacturer Part Number:

    AT45DB641E-SHN-B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    85 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5.29 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    1

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.24 mm

AT45DB641E-SHN-B Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT45DB641E-SHN-B is 2.7V to 3.6V.
  • The AT45DB641E-SHN-B has a 128-byte page buffer. To handle page buffer management, you need to write data to the page buffer, and then perform a page write operation to transfer the data from the buffer to the main memory.
  • The Ready/Busy (RDY/BUSY) pin is an open-drain output that indicates the status of the device. When the device is busy with an internal operation, the RDY/BUSY pin is low. When the operation is complete, the pin goes high, indicating that the device is ready for the next operation.
  • To perform a sector erase operation, you need to send a sector erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector.
  • The AT45DB641E-SHN-B supports up to 100,000 erase cycles per sector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT45DB641E-SHN-B Overview

Use the download button to access the AT45DB641E-SHN-B schematic symbol, PCB footprint, and 3D model.
