AT86RF232-ZXR - Microchip

Description: RF Transceiver 2.4 GHZ ZIGBEE TRANSCEIVER

Download AT86RF232-ZXR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

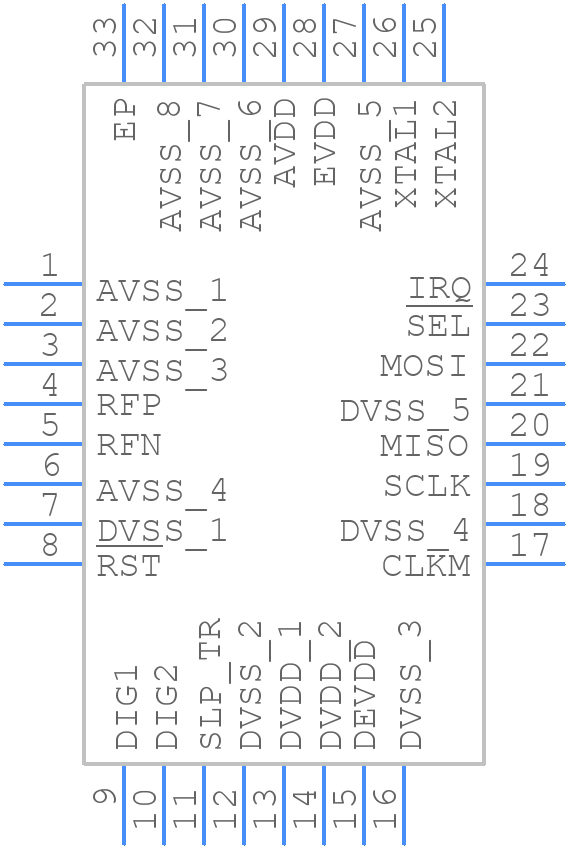

AT86RF232-ZXR - Microchip - PCB symbol
click to zoom
PCB Footprints
AT86RF232-ZXR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32QN2
click to zoom
3D Models
AT86RF232-ZXR - Microchip - 3D model - Quad Flat No-Lead - 32QN2
click to zoom

AT86RF232-ZXR Details

  • Manufacturer Part Number:

    AT86RF232-ZXR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

AT86RF232-ZXR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT86RF232-ZXR is 2.4V to 3.6V, with a typical voltage of 3.0V.
  • To configure the AT86RF232-ZXR for optimal performance, refer to the Microchip AT86RF232-ZXR Application Note (Document Number: 82066A) which provides guidelines for optimal performance, including settings for transmission power, data rate, and modulation scheme.
  • The maximum transmission power of the AT86RF232-ZXR is +20 dBm (100 mW) in the 2.4 GHz frequency band.
  • To implement frequency hopping with the AT86RF232-ZXR, use the device's built-in frequency synthesizer and configure the frequency hopping sequence using the device's registers. Refer to the AT86RF232-ZXR datasheet and application notes for more information.
  • The AT86RF232-ZXR's sensitivity in receive mode is -101 dBm at a data rate of 20 kbps and -95 dBm at a data rate of 250 kbps.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT86RF232-ZXR Overview

Use the download button to access the AT86RF232-ZXR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT86R, or try a keyword search, such as Other Telecom ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to AT86RF232-ZXR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

AT86RF232-ZXR Alternates

Showing results

Image Part Number Model
Part Image AT86RF232-ZX Microchip Technology Inc

2.4 GHZ ZigBee Transceiver, Commercial
