AT88SC0808CA-Y6H-T - Microchip

Description: Security ICs / Authentication ICs CRYPTO Memory 8Kbit, 8zones

Download AT88SC0808CA-Y6H-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

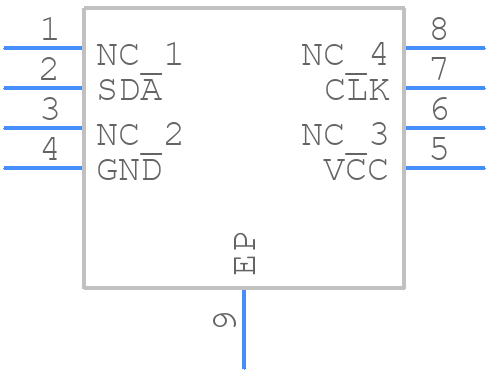

AT88SC0808CA-Y6H-T - Microchip - PCB symbol
click to zoom
PCB Footprints
AT88SC0808CA-Y6H-T - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pad UDFN
click to zoom
3D Models
AT88SC0808CA-Y6H-T - Microchip - 3D model - Small Outline No-lead - 8-pad UDFN
click to zoom

AT88SC0808CA-Y6H-T Details

  • Manufacturer Part Number:

    AT88SC0808CA-Y6H-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8523.52.00.90

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Memory IC Type:

    CRYPTO MEMORY

  • Qualification Status:

    Not Qualified

AT88SC0808CA-Y6H-T Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the AT88SC0808CA-Y6H-T is -40°C to +125°C.
  • Yes, the AT88SC0808CA-Y6H-T is designed to operate in a wide range of humidity levels, from 5% to 95% relative humidity.
  • The maximum clock frequency supported by the AT88SC0808CA-Y6H-T is 10 MHz.
  • Yes, the AT88SC0808CA-Y6H-T can operate with a power supply voltage of 2.7V to 5.5V, including 3.3V.
  • The security fuse bits in the AT88SC0808CA-Y6H-T should be handled according to the recommended programming and verification procedures outlined in the datasheet to ensure secure operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT88SC0808CA-Y6H-T Overview

Use the download button to access the AT88SC0808CA-Y6H-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT88S, or try a keyword search, such as Other Memory ICs
