ATA5724P3C-TKQY - Microchip

Description: RF RECEIVER ASK/FSK 433MHZ 20SSO

Download ATA5724P3C-TKQY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

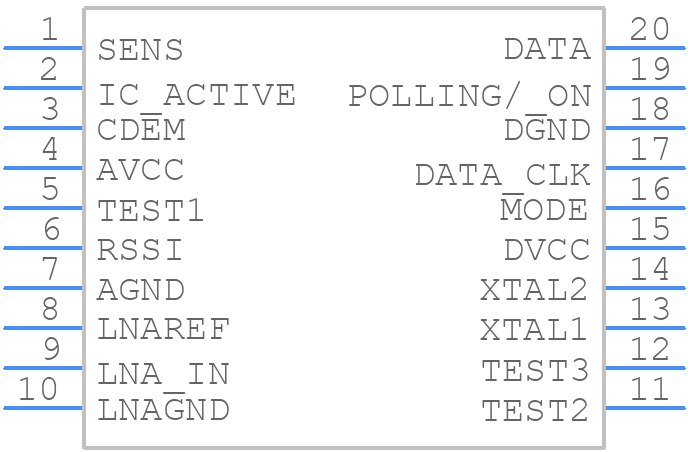

ATA5724P3C-TKQY - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA5724P3C-TKQY - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20-ren1
click to zoom
3D Models
ATA5724P3C-TKQY - Microchip - 3D model - Small Outline Packages - TSSOP20-ren1
click to zoom

ATA5724P3C-TKQY Details

  • Manufacturer Part Number:

    ATA5724P3C-TKQY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.75 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    0.011 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ATA5724P3C-TKQY Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATA5724P3C-TKQY evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ATA5724P3C-TKQY has a low-power mode that can be enabled by setting the PDN pin to a logic low state. Additionally, the device can be configured to enter a low-power state by using the SPI interface to set the power management registers. Refer to the device's application note for detailed configuration and programming information.
  • The ATA5724P3C-TKQY has an operating temperature range of -40°C to +125°C, making it suitable for automotive and industrial applications that require high reliability and robustness in harsh environments.
  • Yes, the ATA5724P3C-TKQY is designed to meet the requirements of safety-critical applications, such as automotive systems, and is compliant with relevant safety standards, including ISO 26262 and IEC 61508. However, it is essential to follow the safety guidelines and recommendations provided by Microchip and to perform thorough testing and validation to ensure the device meets the specific safety requirements of the application.
  • Microchip provides a range of resources to help troubleshoot issues with the ATA5724P3C-TKQY, including application notes, FAQs, and technical support. Engineers can also use debugging tools, such as logic analyzers and oscilloscopes, to identify and resolve issues related to the device's operation and communication.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATA5724P3C-TKQY Overview

Use the download button to access the ATA5724P3C-TKQY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA57, or try a keyword search, such as Other Telecom ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
