Part Image

ATA6563-GAQW1 - Microchip

Description: Microchip Technology CAN TRX with VIO PIN (DFN8)

Download ATA6563-GAQW1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

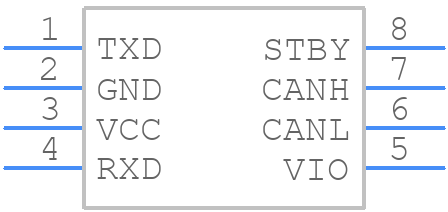

Symbol
ATA6563-GAQW1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA6563-GAQW1 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-lead plastic small out line (sn)
click to zoom
3D Models
ATA6563-GAQW1 - Microchip - 3D model - Small Outline Packages - 8-lead plastic small out line (sn)
click to zoom

ATA6563-GAQW1 Details

  • Manufacturer Part Number:

    ATA6563-GAQW1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-06-19

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ATA6563-GAQW1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ATA6563-GAQW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. A 4-layer PCB with a dedicated power plane is recommended.
  • To optimize power consumption, use the low-power mode, reduce the switching frequency, and minimize the number of active channels. Additionally, use a low-dropout regulator (LDO) to reduce power consumption in standby mode.
  • The maximum operating temperature range for the ATA6563-GAQW is -40°C to +125°C. However, the device can operate up to 150°C for short periods during soldering or reflow processes.
  • To troubleshoot issues, use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, clock, and reset signals. Verify that the device is properly configured and that the firmware is correct. Consult the datasheet and application notes for guidance.
  • Yes, the ATA6563-GAQW is AEC-Q100 qualified and suitable for automotive applications. However, ensure that the device is used within the specified operating conditions and that the system design meets the required automotive standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATA6563-GAQW1 Overview

Use the download button to access the ATA6563-GAQW1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA65, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
